THE PELLETS - A NEW, ECONOMICAL AND ECOLOGICAL COMBUSTION MATERIAL
Technical Report
Radu SEBASTIAN
Eng. - Director SEBA Industrial S.R.L. Bucuresti
Address: Bd. Iuliu Maniu nr. 562, Sector 6, 061129
Bucuresti
Tel. +4021 3183669. Fax. +4021 3183675. E-mail:
seba-industrial@seba.ro
Pellets are a new combustion material, which
meets the actual requirements of using "clean"
and regenerative energy and which represents the
alternative for domestic and industrial heating
and also the cleanest one. In Romania, in the
conditions of aligning the costs of the classical
combustibles to the European ones, this alternative
will become soon the more economic and comfortable
in the same time.
By definition, the pellet is a small briquette
obtained by pressing the wood dust resulted from
logs cutting and from the primary and secondary
processing of wood and also from the wood flakes
resulted from the wood waste and tree falls or
other vegetal materials.
The history of the pellets production is as follows:
- 1970 - the first pellets production unit is
built in Brownsville, USA.
- 1983 - the first residential thermal station
which uses pellets as combustible is sold in USA.
- 1990 - the industrial manufacturing of pellets
as combustibles begins in Sweden.
- 1996 - there were more than 20 manufacturers
of thermal stations and more than 80 pellets producers.
More than one million tons of pellets are heating
houses from North America.
- 1997 - there were more than 500 000 thermal
power stations using pellets in North America.
The wooden pellets production and the rapid development
of the market for this product is due to the following
reasons:
- it is an efficient way of using the local resources
of the community in order to produce thermal energy
at low costs;
- pellets are easy to use in automatic feeding
installations unlike the classical briquettes
with big sizes, which generally are used to replace
the firewood;
- it doesn't release noxa through burning process
and it doesn't influence the global warming of
the planet, releasing as much carbon dioxide as
the vegetation consumes.
The fabrication process for these small briquettes
is the extrusion in special equipment, and it
doesn't need additives and binding materials because
of the resins contained by wood as basic raw material.
The main component equipment of an installation
which produces pellets are:
- raw material warehouse
- wood primary reduction equipment
- transportation and feeding system
- sawdust dryer
- hammer mill for grinding
- system for fiber conditioning
- extruder for pellets
- pellets cooler
- pellets packing machine
- conditioning areas
- finished product warehouse.

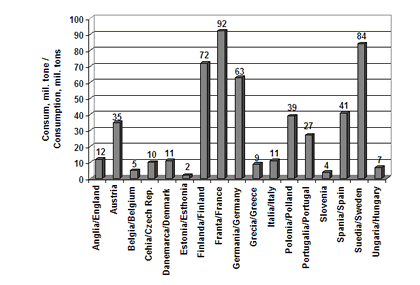

According to the statistical data published in
2004, the utilization of pellets for the big consumers
in Europe is as follows:
In Germany, the sales movement in the last 3 years
for stoves and boilers using wooden pellets is
as follows:
- 2003 - 11000 units;
- 2004 - 23000 units;
- 2005 - 38000 units.
The main characteristics of the wooden pellets
are:
- Size: diameter 6 - 8mm, maximum length is five
times the diameter.
-Calorific power: 16,9 -18MJ/kg ( 4,7 - 5 Kwh/kg
)
- Moisture content: 8 - 12%
- Ash content: 0,5%
- Raw material: wood sawdust, wood flakes
- Density: 650 - 700kg / cbm
- Deposit area: 1,5cbm / ton
- Equivalence:1000 liters fuel = 2,1 tons pellets;
1 ton fuel = 2,5 tons pellets.
In the countries from Western Europe there are
pellets norms in force. Thus, in Germany the pellets
must be produced according to DIN 51731 which
specify the following characteristics:
- Diameters - there are 5 classes from 4 to 10mm
- Length - smaller or equal to 50mm
- Density - 1 - 1.4 g/cm3.
- Moisture content - smaller or equal to 12%
- Ash content - smaller or equal to 1.5%
- Calorific power 17.5 - 19.5MJ/kg
- Sulphur content - smaller than 0.08%
- Nitrogène content - smaller than 0.3%
- Chlorine content - smaller than 0.03%.
Speaking about noxa emission, the studies show
that the pellet has the lower emission comparing
it with the emissions from other combustibles
such as firewood, sawdust or oil.
We are presenting you below the carbon monoxide
emissions for the thermal power stations with
the power between 15 and 50kW:
- firewood
..
310mg/Nmc
- sawdust
.
.
120mg/Nmc
- pellet
103mg/Nmc
The emission of particles experimentally determined
for the same types of thermal power stations,
are as follows:
- firewood
...23mg/Nmc
- sawdust
34mg/Nmc
- pellet
.19mg/Nmc
Pellets cost
There is a study made in 2003 and published in
January 2004 by a group of researchers from the
research institutes for secondary energy resources
named: WIP - Munich; ETA - Renewable Energies;
EUBIA; CARTIF; CRES. The study was done on a group
of 5 countries where the pellets are produced,
namely Austria, France, Germany, Portugal and
Switzerland. The five countries have produced
in 2004 a total amount of approx. 128 millions
tons of pellets. The production cost to produce
1 ton of pellets in the studied countries is as
follows:
COSTURI
/ COSTS
|
MINIM
Euro
|
MAXIM
Euro
|
MEDIU/ AVERAGE
Euro
|
Materie prima
/ Raw material |
25
|
50
|
37.5
|
Paletare
/ Palleting |
20
|
30
|
25
|
Amortizari si
diverse / Ammortissement and other |
49
|
84
|
66.5
|
COSTURI TOTALE
/ TOTAL COSTS |
94
|
164
|
129
|
There are no statistical data for Romania, because the pellets production is
just at the beginning, at this time being only
two companies with an important pellets production
and they don't make public the fabrication cost.
Anyhow, if we consider that in January 2006 the
companies in Romania were selling one ton of pellets
with 100 - 120 euro, we can figure that the production
cost is lower that the minimum one in Europe.
A relevant index of the fabrication cost in Romania
is the cost of one ton of sawdust in 2006, which
vary between 1 and 3 euro representing a 10 times
lower price that in European countries. In the
first 8 months of year 2006 one ton of pellets
has been exported by the Romanian companies at
EXW prices of 120 euro in January 2006, going
to 180 euro in August 2006, and the production
costs hadn't increased so much, for sure. A theoretical
calculus of the production costs in Romania based
on the actual prices for electric energy, transport
and wood dust goes to a medium pellets cost of
70 euro/ton which can vary depending on the fabrication
line capacity and the distance to the raw material
source. The forecasts show that even the price
will be 10 times more than the acquisition cost
of the sawdust, the pellets fabrication cost Romania
can not be more than 80 euro/ton in 2007. The
conclusion is that pellets business is a profitable
one.
Speaking about the raw materials for pellets,
we must say that it is not limited only to wood,
the research work from the more developed countries
went in finding plants having a great regenerative
power after genetic mutations. Thus, in Sweden
there is already a land of approx. 50.000 ha which
is cultivated with a plant named "energetic
willow" producing in the first year approx.
10 tons of vegetal material at one hectare and
beginning with the second year the production
goes to 40 tons/ha. In Hungary have been cultivated
2000 hectares with this plant, and the production
was higher than in Sweden, because of o higher
temperature and it went to 60 tons / ha. The European
Community has released already a legislation for
this, and countries belonging to the community,
including Hungary, have adopted this legislation,
through which the state finance the economical
agents who want to cultivate these energetic plants.
In Romania there are economical agents who have
license agreements to cultivate bulbs of these
energetic plants in nurseries, and they wait the
moment when legislation will come into force.
The solution of using these plants to obtain energy
has the great advantage that the raw material
is a regenerative one and not limited like the
actual fuels.
|
